A Complete Guide to the Spiral Model in Software Development

The Spiral Model is one of the software development approaches that builds a product step by step through repeated cycles of planning, testing, and improvement.

spiral model

During the early years of software engineering, many large projects failed because traditional methods like the Waterfall model couldn’t handle changing requirements or technical risks effectively. To solve these problems, Barry W. Boehm introduced the Spiral Model, a development approach that combines structured planning with iterative improvement.

In this article, we’ll explore the key aspects behind the Spiral Model, including how it works, when to use it, and what advantages and challenges it brings to software development. You’ll also learn about its advanced versions, best practices, and why it remains a relevant choice for managing modern, high-risk projects.

What is the Spiral Model in Software Development?

The Spiral Model is a software development method that focuses on identifying and reducing risks at every stage. It combines the clear structure of traditional engineering with the flexibility of step-by-step improvement. Instead of following a single straight path, the project moves through several spirals. Each spiral includes planning, building a prototype, testing it, and then using the results to plan the next step.

For example, when creating an online banking system, the team may first build a small version that lets users log in and check their balance. In the next round, they add money transfer features and improve the design based on feedback. Later, they add stronger security and connect it to real banking data. Each cycle helps the team manage risks, improve quality, and make changes as needed.

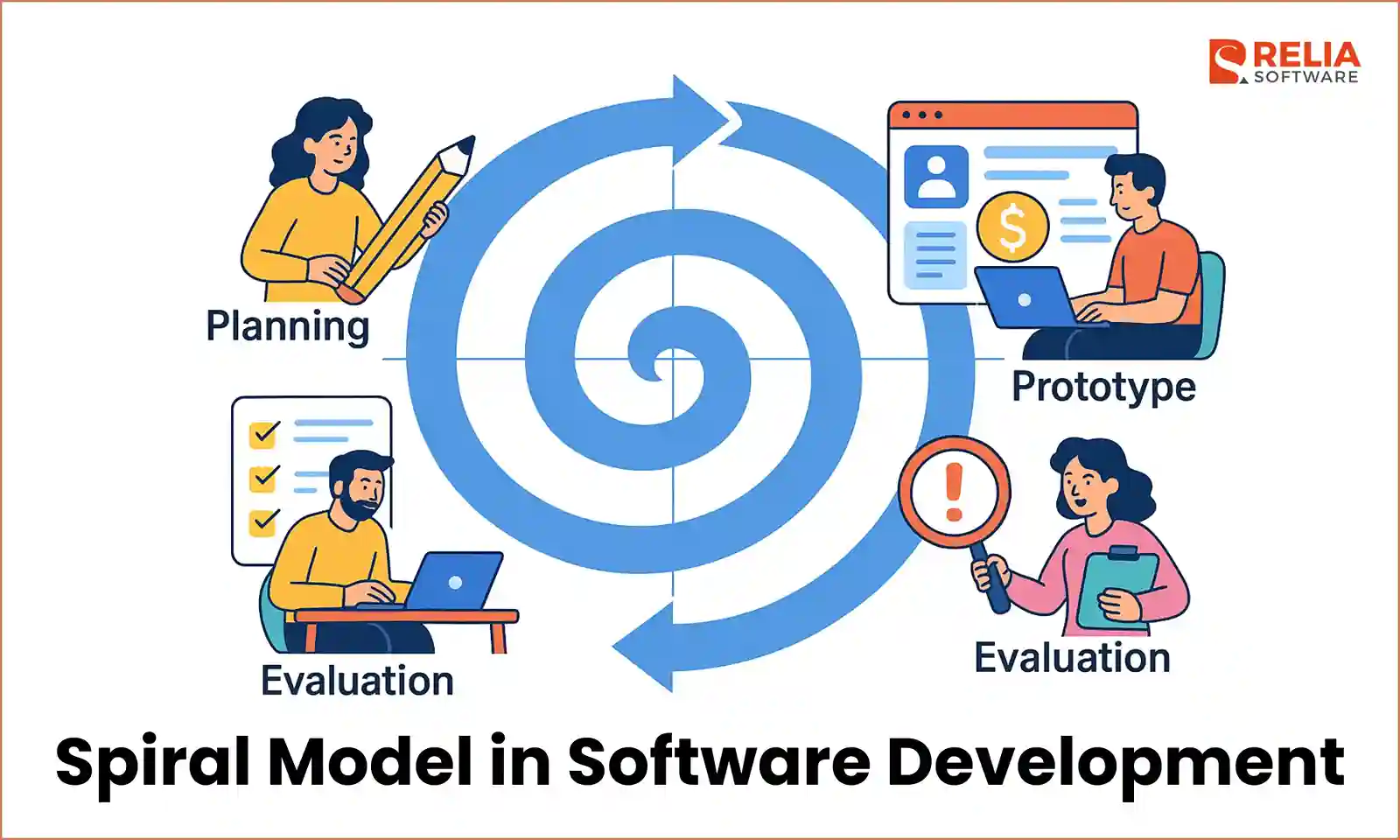

what is spiral model
What is the Spiral Model in Software Development?

>> Read more: What is the V Model in Software Development?

Key Principles of the Spiral Model

Risk-Driven Process

Each development cycle begins by identifying what could threaten the project — technical uncertainty, time pressure, cost limits, or unclear requirements. The team then plans specific actions to reduce these risks before deeper development begins. By resolving the most critical risks early, projects stay stable and predictable instead of facing surprises later.

Iterative Refinement

The Spiral Model builds the system in repeated rounds rather than one long sequence. After each iteration, results are tested and reviewed, and the feedback shapes the next version. This ongoing refinement helps the product evolve naturally, letting the team improve design accuracy and performance with every loop.

Stakeholder Involvement

Stakeholders take part at the end of every cycle to review outcomes and provide input. Their feedback confirms whether goals are being met and whether new requirements have emerged. Frequent reviews help prevent misunderstandings, ensuring the software stays aligned with business or user needs throughout development.

Progressive Commitment

Instead of investing all resources from the start, teams scale their commitment as confidence grows. The early loops focus on exploration and validation, using smaller budgets. Once major risks are reduced, the team can safely expand scope and funding. This approach protects organizations from overspending on uncertain ideas.

Flexibility of Integration

The Spiral Model can blend methods from other SDLC frameworks. A team may include structured documentation like Waterfall, modular builds from Incremental, or Agile sprints for faster delivery. This flexibility allows each project to use the process style that fits best, making the Spiral adaptable to both formal and dynamic environments.

4 Main Stages of the Spiral Model

At its core, the Spiral Model is not a single process but a framework combining iterative development with systematic risk management. Each cycle (or “loop”) passes through four fundamental phases:

  • Objective Setting & Alternatives Identification
  • Risk Analysis & Prototyping
  • Development & Verification
  • Planning for the Next Iteration

After completing a full development lifecycle, the spiral expands outward, meaning progress is made, but with continuous learning and refinement from the previous cycle. The outer spirals represent increasing project maturity, from initial concept through deployment.

Objective Setting and Alternatives Phase

The first phase focuses on defining goals, constraints, and possible solutions for the current iteration.

 Key activities include:

  • Determining functional and non-functional objectives.
  • Identifying project constraints (budget, tools, timelines, regulations).
  • Listing alternative strategies or technologies to reach those goals.

At this stage, decision quality directly affects later effort. The output should be clear objectives and viable options that will enter risk evaluation.

>> Read more: Differences Between Functional and Non-Functional Testing

Risk Analysis and Prototyping

This section is what makes the Spiral Model unique. It finds project risks and lowers them before the development goes further.

Activities typically include:

  • Analyzing risks such as performance, feasibility, integration, cost, or usability.
  • Building prototypes, models, or proofs of concept to test critical assumptions.
  • Evaluating results to determine whether to proceed, redesign, or cancel a risky path.

After conducting all actions above, we will have a risk mitigation plan, prototype results, recommendations, and updated technical and management strategies. At the end, this phase ensures decisions are evidence-driven, not assumption-based.

>> Read more: 10 Popular Prototyping Tools For UI/UX Developers

Development and Verification

Once risks are sufficiently controlled, the team proceeds with implementation. Depending on project scope, this may include:

  • Designing system components and data models.
  • Coding and unit testing.
  • Integrating modules verified through prototypes.

Quality assurance occurs continuously; each iteration builds on past results instead of making untested predictions. Deliverables include the updated working version of the software, which is verified against current iteration goals.

>> Read more:

Planning the Next Iteration

The final phase reviews progress, defines deliverables for the next loop, and assesses whether the project should continue or not.

Key steps:

  • Conduct stakeholder reviews.
  • Estimate cost, effort, and resources for the next cycle.
  • Decide whether to expand, refine, or terminate the project.

In this phase, progressive commitment is enforced; the next investment level for the project is based on the results of the previous cycle. In regulated or enterprise environments, this stage also creates documentation for management sign-off.

Spiral Model's Ideal Use Cases

Projects with uncertainty, high risk, or ongoing stakeholder input benefit from the Spiral Model.

High Technical or Operational Risk

When projects rely on new technologies, complex integrations, or untested system designs, the Spiral Model helps teams detect issues early. Each loop focuses on identifying and solving risks before committing major resources.

Evolving or Unclear Requirements

If requirements change frequently or are not well-defined at the start, this model allows them to mature through continuous feedback. Each iteration helps clarify expectations and prevent misunderstandings in the future.

Mission-Critical Systems

The model fits projects where safety, reliability, or compliance cannot be compromised. Every cycle includes testing and documentation, ensuring the product remains stable and verified at every step.

Structured but Flexible Governance

In large organizations that require both formal control and adaptability, the Spiral Model provides a balance. Teams can follow documentation standards and reviews while still iterating quickly within each cycle.

Regular Stakeholder Review

Projects involving multiple decision-makers benefit from built-in review checkpoints. Stakeholders can evaluate progress at the end of every iteration and approve adjustments as needed.

Typical Applications

Common uses include enterprise ERP solutions, defense or aerospace software, medical systems, and financial platforms that require strict validation, long development cycles, and continuous monitoring of risk.

>> Read more: 10 Best Custom ERP Development Companies in Vietnam

Pros and Cons of the Spiral Model

Advantages

  • Risk-Centric Development: Focuses on finding and solving major risks early, preventing expensive errors later.
  • Iterative Refinement with Control: Enables repeated improvement through cycles while keeping clear management oversight.
  • Early Customer Feedback: Uses prototypes for early reviews so stakeholders can refine requirements before full development.
  • Flexibility Across Phases: Allows mixing methods like Waterfall, Agile, or Incremental inside the same framework.
  • Progressive Resource Commitment: Expands budget and team size gradually as project risks decrease and confidence grows.

Disadvantages

  • High Management Overhead: Needs constant risk tracking, documentation, and reviews, which require skilled managers and structured processes.
  • Complex Implementation: Demands solid knowledge of risk analysis, estimation, and prototyping; not ideal for inexperienced teams.
  • Cost and Time Intensive: Frequent reviews and planning steps can slow down smaller or short-term projects.
  • Dependence on Accurate Risk Evaluation: If risks are identified poorly, the process loses focus and becomes repetitive without real progress.

Implementation Guidance and Best Practices

Implementing the Spiral Model effectively requires both discipline and adaptability. The following practices help teams maintain focus and consistency.

Step 1: Define Clear Iteration Objectives

Every iteration should start with goals that are specific and easy to measure. The team must understand what kind of uncertainty they are reducing and what outcome will confirm that reduction. Setting vague or broad objectives usually leads to confusion and wasted effort. When the purpose of each cycle is clear, it becomes easier to track progress and make informed decisions.

Step 2: Prioritize Risk Assessment Over Delivery Volume

Every iteration should start with goals that are specific and easy to measure. The team must understand what kind of uncertainty they are reducing and what outcome will confirm that reduction. Setting vague or broad objectives usually leads to confusion and wasted effort. When the purpose of each cycle is clear, it becomes easier to track progress and make informed decisions.

Step 3: Integrate Prototyping Strategically

Prototypes should always serve a purpose — to test ideas, prove feasibility, or collect feedback that reduces uncertainty. There are several useful forms of prototypes:

  • Conceptual prototypes help validate user interfaces and design flow.
  • Technical prototypes test the architecture or integration between systems.
  • Performance prototypes evaluate how the system handles load and speed.

Each prototype should lead to documentation or evidence that supports the next development decision, so lessons from one iteration carry forward.

Step 4: Use Decision Gates

At the end of every cycle, there should be a review point where the team and stakeholders decide whether to continue, revise, or stop the project. These decision gates make the process disciplined and prevent endless looping. Each review should answer a few clear questions:

  • Have the main risks been reduced or eliminated?
  • Are deliverables verified and properly recorded?
  • Do stakeholders agree that the outcomes meet expectations?

If the answers are unclear, the next cycle must focus on closing those gaps.

Step 5: Maintain Stakeholder Visibility

Visibility keeps trust strong. Holding brief review sessions after each iteration helps management, engineers, and clients stay aligned. Visual dashboards, such as Gantt charts or risk matrices, make it easier to show progress and highlight where decisions are needed. Regular updates also prevent miscommunication and strengthen accountability across the team.

Step 6: Combine Spiral with Modern Practices

The Spiral Model works well with methods that encourage fast feedback. Teams can use agile practices, such as sprint planning or short retrospectives, to structure their inner loops. After each cycle, DevOps automation can also be used to test and release the results. Together, these practices maintain steady progress while preserving the model’s strength in risk control and careful decision-making.

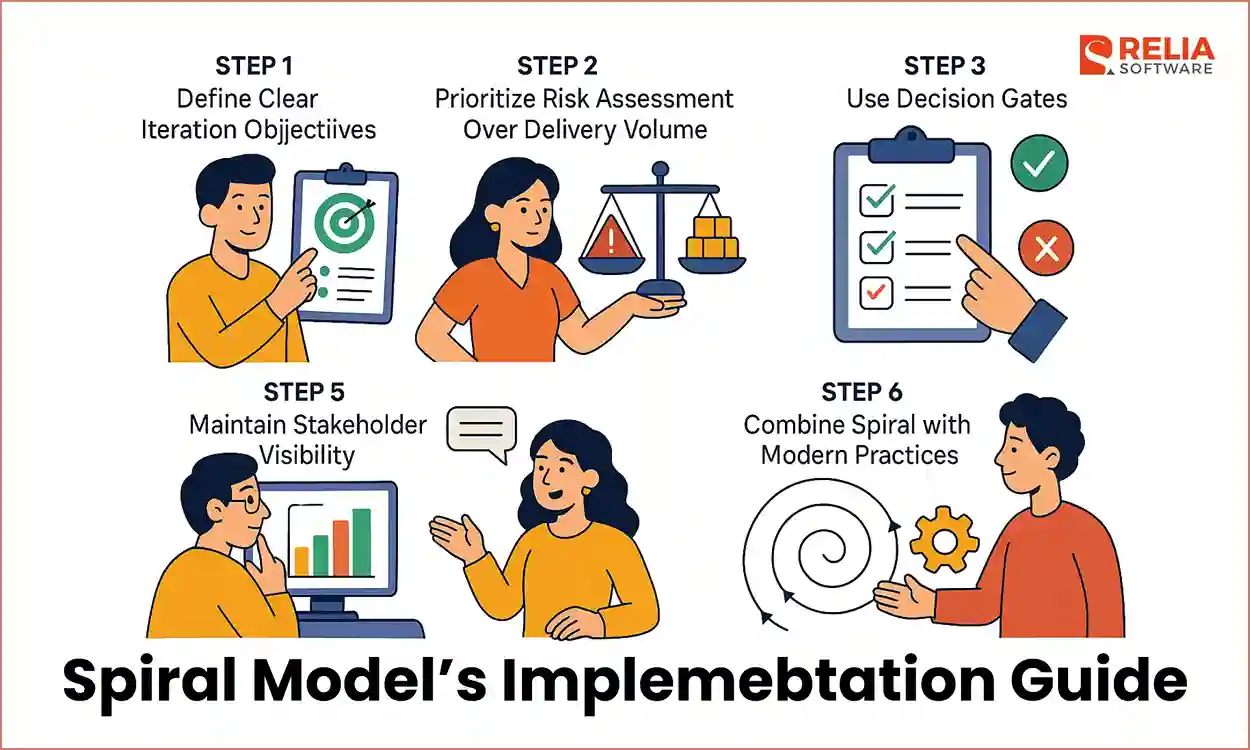

spiral model implementation guide
Implementation Guidance and Best Practices of Spiral Model

Variants and Adaptations of the Spiral Model

While Boehm’s original design remains foundational, modern development has produced several variants and hybrids that adapt the spiral’s core ideas to new contexts.

Incremental Spiral Model

This version divides a big project into smaller parts. Each part goes through its own spiral cycle, planning, checking risks, building, and reviewing. At the end of each cycle, the team delivers a working piece of the product. When all the parts are combined, they form the complete system. This model is useful for projects that need regular progress checks and visible results after each stage.

>> Read more: In-depth Explanation Of Iterative and Incremental Development

Agile-Spiral Hybrid

Many teams mix Agile methods with the Spiral Model. In this approach, each spiral acts as a major release, and smaller loops inside work like short Agile sprints. Risk analysis helps set priorities, while frequent testing keeps the product ready to use after every cycle. This mix is practical for organizations that want the flexibility of Agile but still need risk control and structure, such as those in finance or healthcare.

>> Read more: Top 10 Agile Frameworks for Software Engineering

Controlled Spiral (Stage-Gate Integration)

In industries with strict rules or safety standards, the Spiral Model can include stage-gate reviews. Each gate is a checkpoint where the team shows results, documents progress, and gets approval before moving forward. This method keeps the project transparent and traceable while allowing iteration to continue. It fits well for large or regulated projects that must balance flexibility with formal control.

Table Comparison Of the Spiral Model with Other Models

Models

Approach

Flexibility

Risk Handling

Suitable For

Waterfall Model

Sequential

Low

Low

Stable, simple projects

Iterative Model

Repetitive builds

Medium

Moderate

Gradual requirement evolution

Agile Model

Incremental sprints

High

Moderate

Fast-changing, user-driven projects

Spiral Model

Risk-driven iterative

High

Very High

Complex, uncertain, high-risk systems

FAQs

1. How do you apply the Spiral Model?

Start by setting goals and identifying risks for the first loop. Build a small prototype to test your approach, review it with stakeholders, and plan the next step. Repeat this process until the product is complete and all major risks are resolved.

2. When should you use the Spiral Model?

Use it when projects have high technical risks, changing requirements, or need regular validation. It works best for enterprise systems, defense software, or large projects where safety and reliability are critical.

3. How is the Spiral Model different from Agile?

Agile focuses on quick releases and frequent feedback. The Spiral Model also includes feedback, but adds a strong risk assessment step in every loop. It’s more formal and structured, while Agile is more flexible and team-driven.

>> Read more: Agile vs Waterfall Methodology: Similarities, Differences & Use Cases

4. What are examples of projects using the Spiral Model?

It’s commonly used in banking systems, ERP platforms, medical software, aerospace systems, and government projects where accuracy, testing, and documentation matter at every stage.

5. Is the Spiral Model still used today?

Yes, especially in complex or safety-critical industries. Even with Agile and DevOps becoming popular, the Spiral Model remains relevant for projects that need structured control, detailed reviews, and clear documentation.

>> Read more:

Conclusion

The Spiral Model remains one of the most reliable methods for managing complex or high-risk software projects. It combines structured planning with continuous feedback and risk control, which helps teams make smarter decisions and adapt as the project evolves.

While it requires careful management and may not suit smaller projects, the Spiral Model offers a balanced way to build large systems safely and efficiently. Its focus on learning, validation, and flexibility makes it a valuable approach even in today’s fast-changing development environments.
